Rotary Kiln
The cement rotary kiln, a central component of cement clinker production, consists of kiln body, drive system, support rollers, thrust rollers, sealing units at both ends, a kiln hood, and burner equipment. It plays a pivotal role by calcining raw materials into clinker at high temperatures in the cement manufacturing process.
Table Of Contents For This Page
It is not easy to introduce all aspects of Rotary Kiln, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Technological process For Rotary Kiln

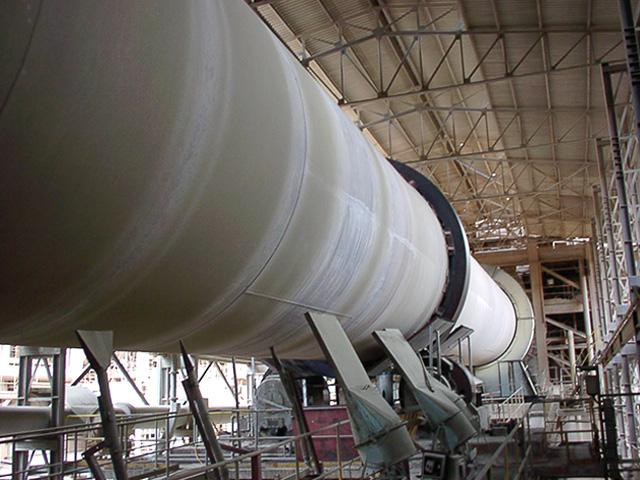

A cement plant rotary kiln is a slightly inclined roller (typically inclined at 3% to 3.5%) that promotes material mixing and facilitates the movement of materials through the kiln. As materials progress through the kiln, they undergo high-temperature calcination, leading to clinker formation, which is essential in the cement manufacturing process. In a precalciner system, the rotary kiln serves as the final stage for carbonate decomposition and the formation of cement clinker minerals.
Key components of Rotary Kiln
Rotary Kiln consist of key components: Kiln body&Kiln tyre, Support devices; Hydraulic thrust roller, drive system and Sealing units.
Kiln body & Kiln Tyre
- Flaw detection report
- Performance Report
- 100% secondary inspection of welds of kiln body
- Material report

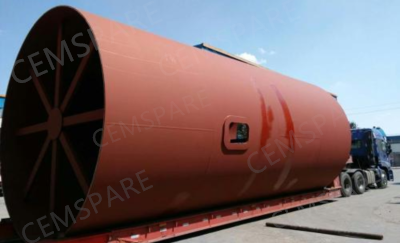

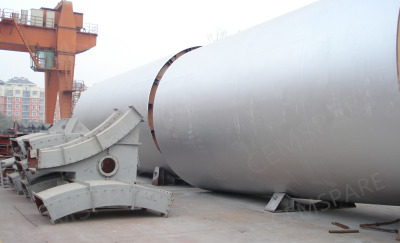

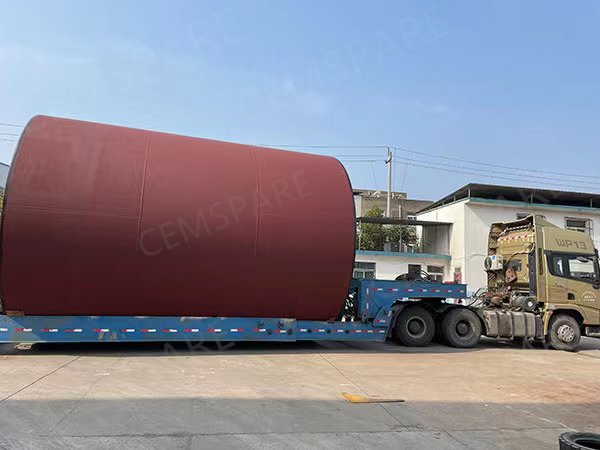

The kiln body, serves as the heated rotating component. It is constructed using high-quality steel plates, approximately 40mm thick, and is internally lined with a layer of refractory bricks, approximately 200mm thick.

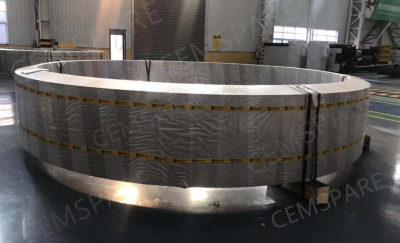

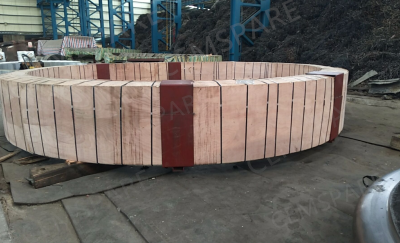

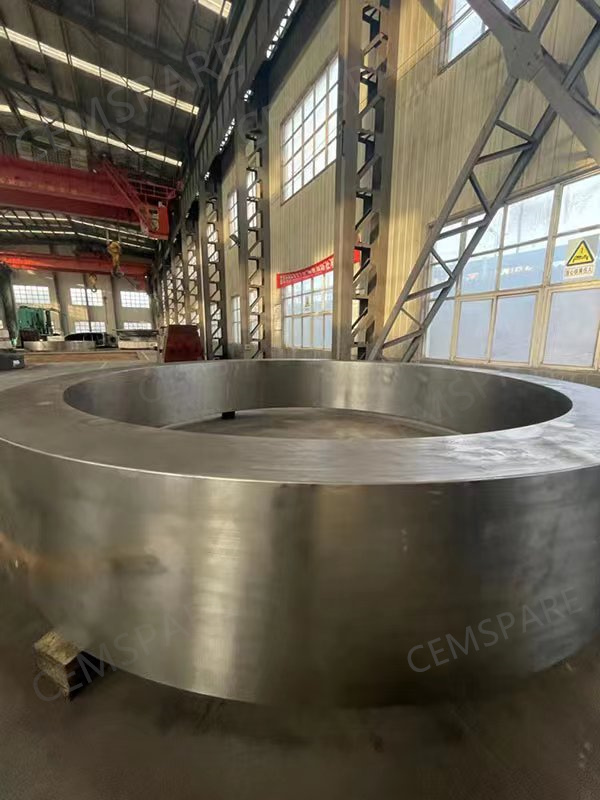

The kiln body is supported by three sets of kiln tyres, circular steel bands that encircle the kiln body and rotate along with it.
A backing plate (thickness 20~50mm) is welded to the kiln body. In order to adapt to the thermal expansion of the kiln body, there is an appropriate gap between the inner diameter of the kiln tyre and the outer diameter of the backing plate (usually 3~6mm). It can control thermal stress and Making full use of the rigidity of the kiln tyre to reinforce the kiln body is currently the most widely used installation method.
Support devices
- magnetic particle testing
- Ultrasonic testing
- Mechanical performance testing
- Chemical composition testing
- Using large hydraulic press nachine to ensure forging ratio
- Material report

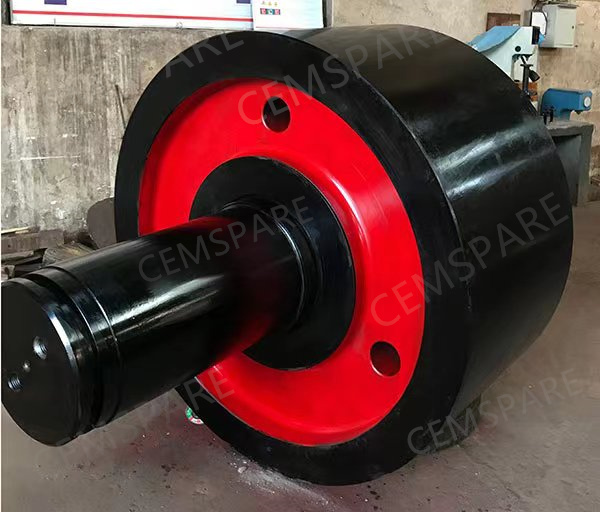

The support device consists of supporting wheels and bearings, which bear the entire weight of the kiln and position the kiln body to ensure safe and stable operation.
Hydraulic thrust roller
- Pressure maintaining test
- Ultrasonic testing
- heat treatment
- Material report

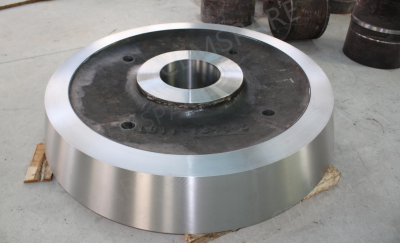

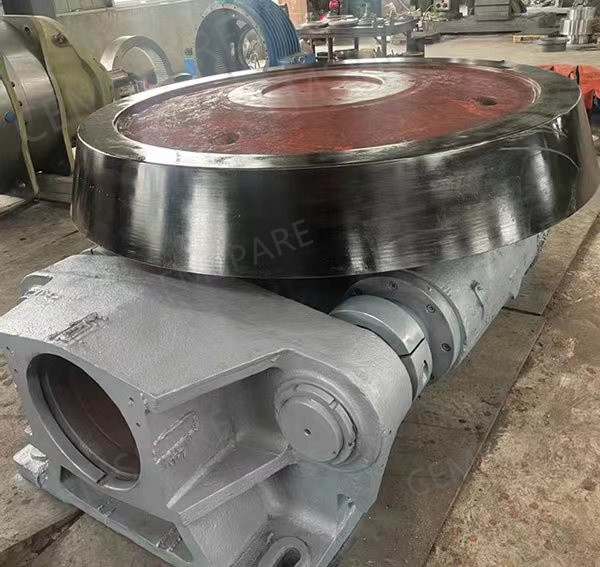

The hydraulic thrust roller consists of thrust rollers, thrust roller shaft, bearing seat, guide shaft, rolling bearing, oil cylinder, support, etc. It is also a travel switch and oil station of thrust roller. Its task is to control the axial movement of the rotary kiln body, so that the kiln tyre and supporting roller can wear evenly across the entire width, while ensuring the linearity of the center line of the kiln body, so that the large and small gears mesh well and reduce power onsumption. The hydraulic cylinder bears all the axial thrust of the kiln body and maintains slow reciprocating motion of the kiln body along the axial direction
Driver system
- Full riser casting process
- blasting treatment
- Advanced heat treatment
- Three ultrasonic inspections and two magnetic particle inspections
- material report

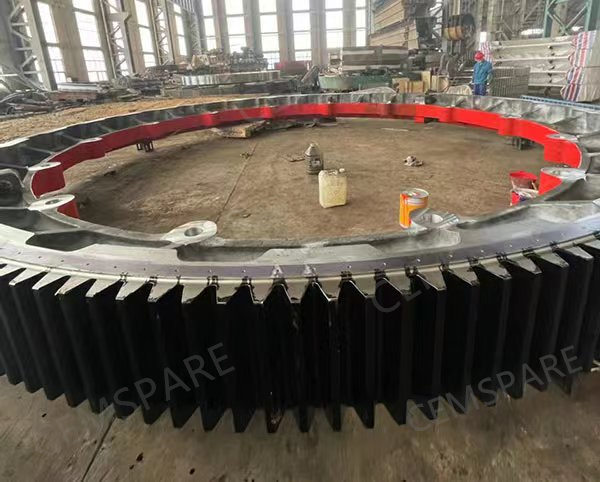

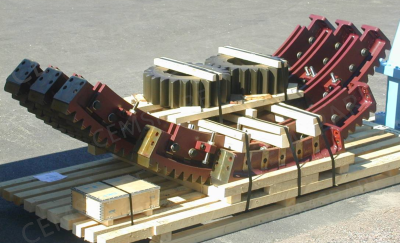

The rotary kiln is a slow-rotating equipment. The drive system is composed of motor, reducer, and large and small girth gears. The center line of the large girth gear set on the kiln body coincides with the center line of the kiln.
sealing units
- Stainless steel material
- laser cutting
- High temperature resistance, wear resistance, and tight sealing
- material report

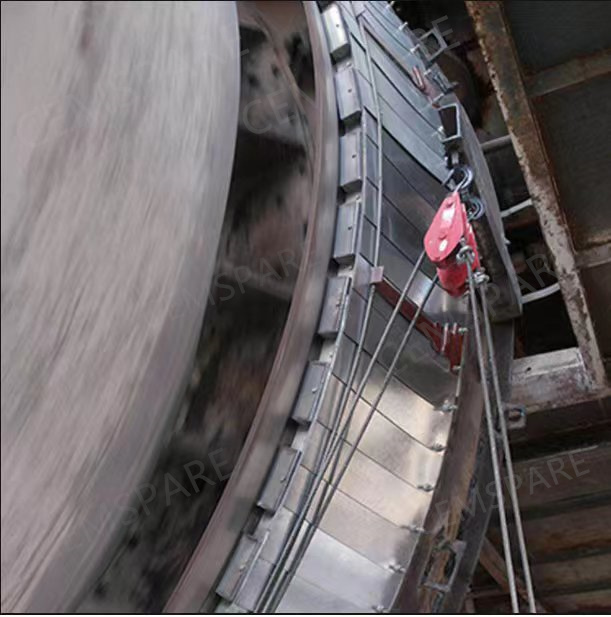

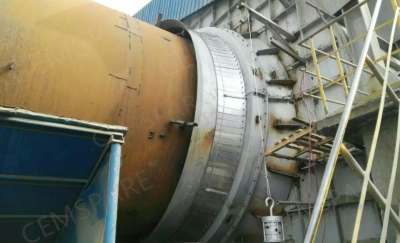

Sealing at the kiln head and kiln tail is essential to maintain the stability of the thermal system in a rotary kiln. A well-balanced proportion of material quantity, fuel, and air is crucial for efficient clinker production. The kiln operates under negative pressure, leading to air intake at the connection points with fixed devices at the kiln head and kiln tail. This air intake can disrupt the balance, affecting the normal calcination of materials and decreasing clinker quality.
Spare parts for Rotary Kiln

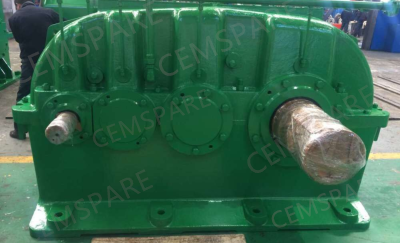

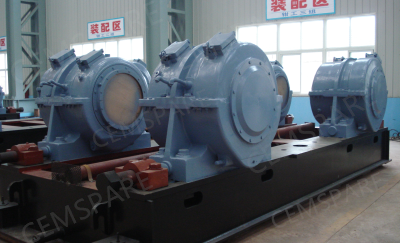

Kiln main gearbox

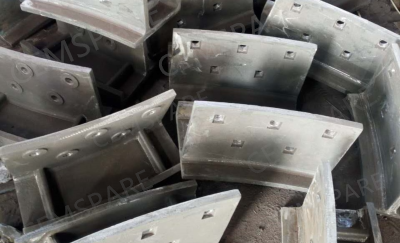

Kiln outlet nose ring segment

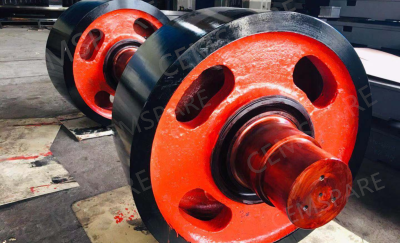

support roller
Process Flow
Please note that the final process depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation.
Step 1:Needs Assessment
We begin by working closely with our clients to understand their specific requirements. This includes identifying the types, quantities, and technical specifications of spare parts needed for their cement equipment. We offer tailored solutions, providing our clients with a selection of compatible spare parts, reducing the need for multiple suppliers and simplifying procurement.
Step 2: Supplier Network of CEMSPARE
CEMSPARE established a robust and reliable supplier network to meet the specific needs of our clients in the cement industry. We maintain an extensive database of reputable suppliers and manufacturers. This database includes an evaluation of their reputation, delivery capabilities, and adherence to quality standards. By building and managing this supplier network, we ensure that our clients have access to a diverse range of high-quality spare parts while maintaining cost-efficiency and reliability in the procurement process. This network serves as a cornerstone of our integrated procurement capabilities.
Step 3: Quality Assurance
Quality control is at the core of our integrated procurement process at Cemspare. Upon receipt of spare parts, we conduct a meticulous in-house quality inspection. Our dedicated team of experts thoroughly examines each component to verify that it aligns with the specified technical standards and quality benchmarks. In cases where additional quality verification is deemed necessary, Third-Party Laboratory conduct comprehensive quality tests to provide an extra layer of assurance.
Step 4: Timely Delivery
We closely monitor our suppliers’ delivery processes, ensuring that spare parts are dispatched in a timely manner. To guarantee on-time delivery, we proactively plan loading and shipping schedules according to your specific requirements and delivery deadlines. We manage the logistics and delivery process, ensuring cement plant on-time receipt of spare parts
Step 5: Ongoing Support & Continuous Improvement
At Cemspare, our commitment to clients extends far beyond the procurement phase. We are dedicated to providing continuous support and optimizing our services. We actively solicit and encourage feedback from our clients on their experiences with our services. This includes their feedback on the spare parts procurement process, quality, and overall satisfaction. We make necessary improvements to the spare parts procurement process, adjusting strategies to align with evolving industry demands and technological advancements.
