Roller Press
One stop cement spare parts supplier
roller press
Roller press developed in the mid-1980s, is a modern, energy-efficient cement grinding equipment. It serves as a pre-crushing unit in cement grinding systems, working alongside other components like separators and ball mills. The roller press offers advantages such as high crushing ratios (up to 30-400), high and stable system throughput, improved material grindability, reduced steel consumption, and lower noise levels. It is particularly suitable for grinding cement clinker and contributes to sustainable and efficient cement production.
Table Of Contents For This Page
It is not easy to introduce all aspects of Roller press, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Technological process For Roller
The roller press shares similarities with vertical mills in that it operates on the principle of material compression and grinding within a compacted bed. However, it has distinct differences. While vertical mills utilize the relative motion of grinding rollers and a grinding disc to crush materials, employing non-completely constrained compression, the roller press relies on pure pressure applied by two counter-rotating rolls to create a compacted bed. This intense internal pressure generates fractures within particles, leading to their comminution. Materials exiting the roller press form a low-strength cake, with particles below 2mm typically comprising 80% to 90% of the product.
Key components of Roller press
Rotary Kiln consist of key components: Kiln body&Kiln tyre, Support devices; Hydraulic thrust roller, drive system and Sealing units.

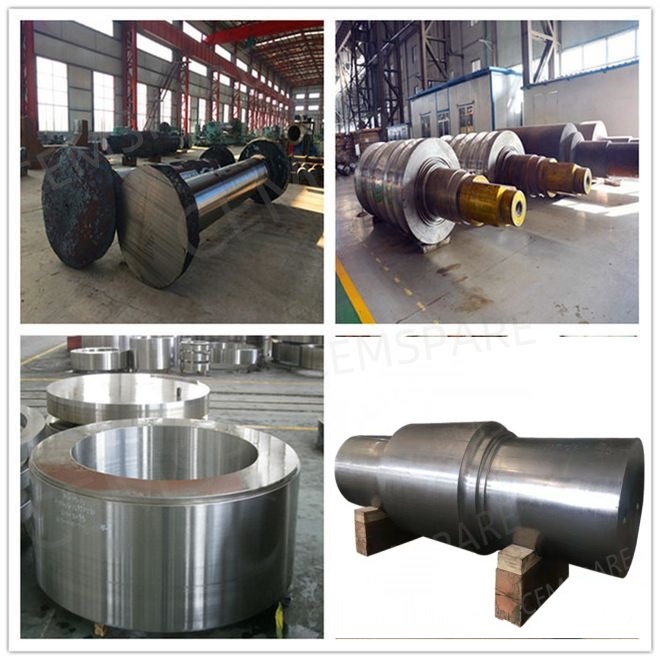

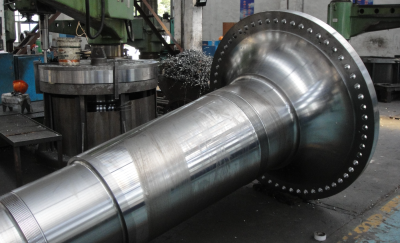

Roller & Support
- Large forging equipment for forging, ensuring forging ratio
- Secondary ultrasonic testing, primary magnetic particle testing
- Mechanical performance test
- Material report

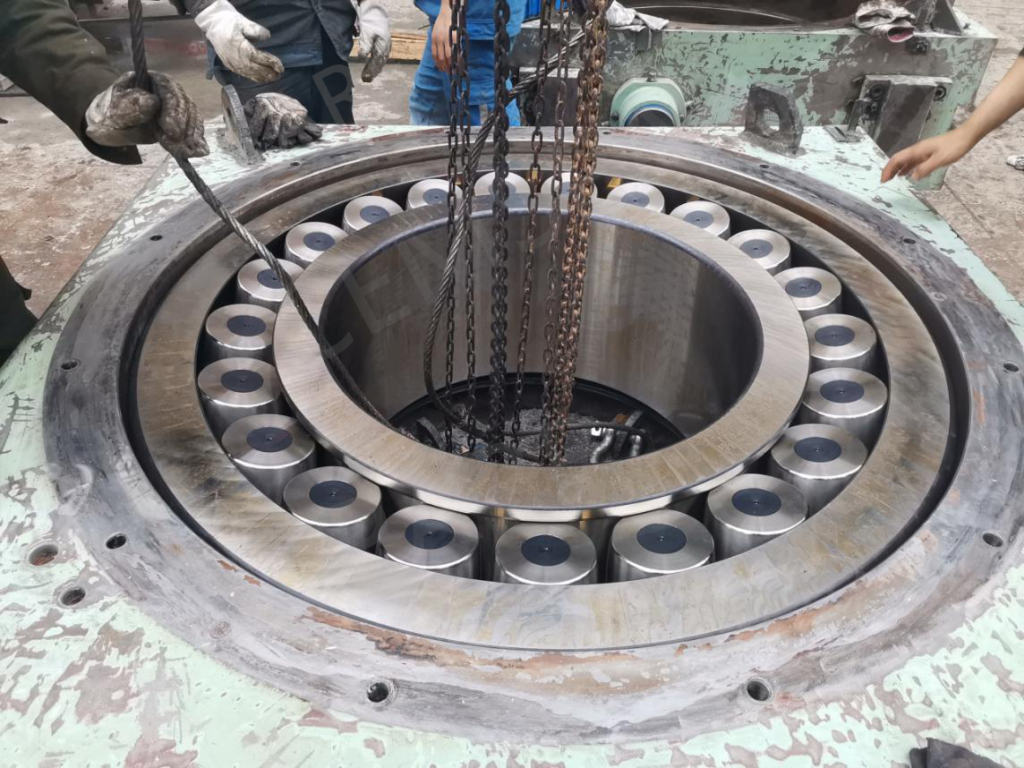

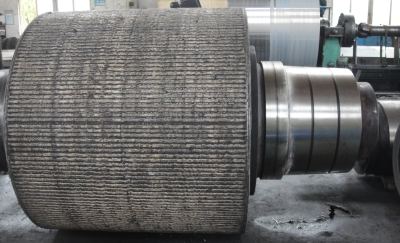

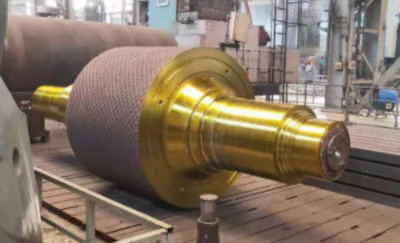

Rollers consist of a wear-resistant roller surface, double-row spherical roller bearings, and adjustable bearing housings that facilitate horizontal movement. The roller surface comes in two variations: smooth and grooved. Smooth surfaces offer cost-effective manufacturing and maintenance, and are easily repairable in the event of corrosion. The roller support relies on heavy-duty double-row self-aligning roller bearings, ensuring precise guidance. Each roller is housed in high-quality alloy steel bearing boxes, with one bearing acting as a fixed bearing to prevent axial movement within its box.

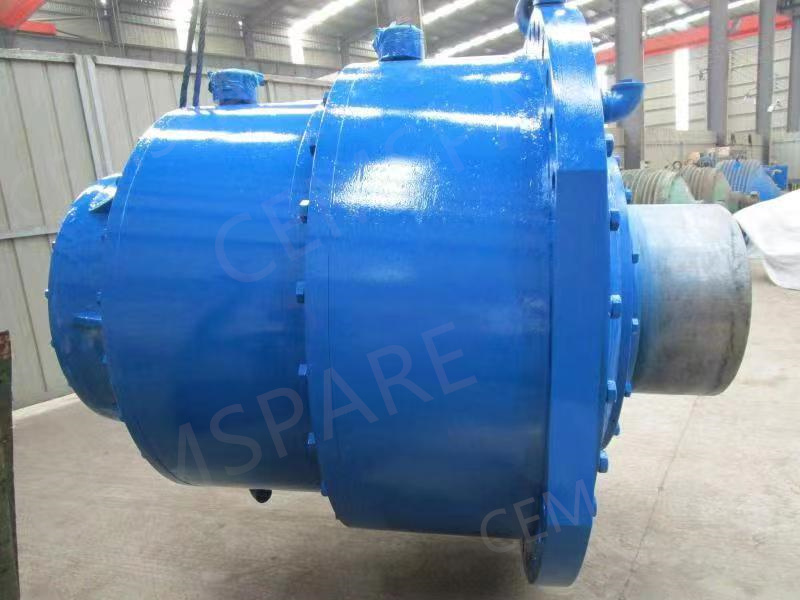

Drive System
- Ensure the hardness and thickness of the carburized layer
- Strict assembly process
- Heat treatment
- Material report

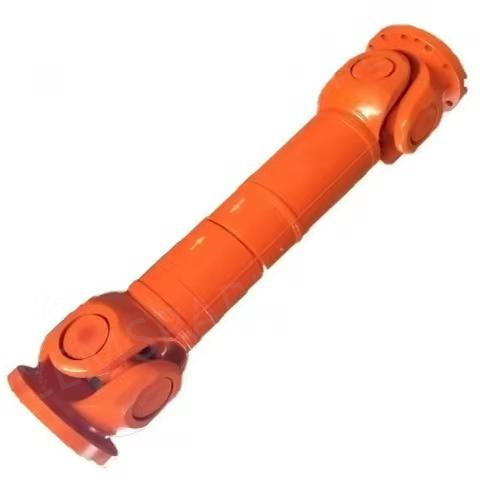

The roller press employs a dual drive system, with two rollers being powered by motors through multi-stage planetary gear reducers. The connection of the two ends is facilitated by end keys (flat pin keys). Torque transmission between certain motors and reducers is achieved using a universal coupling. To prevent overloading of the drive system, a safety coupling is installed.

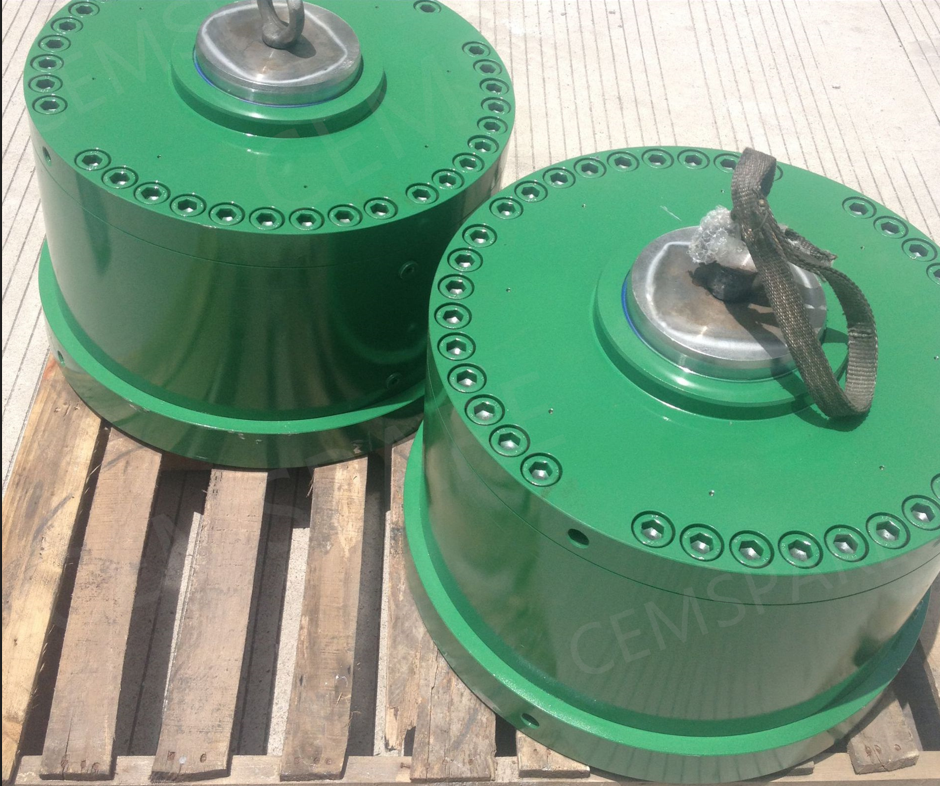

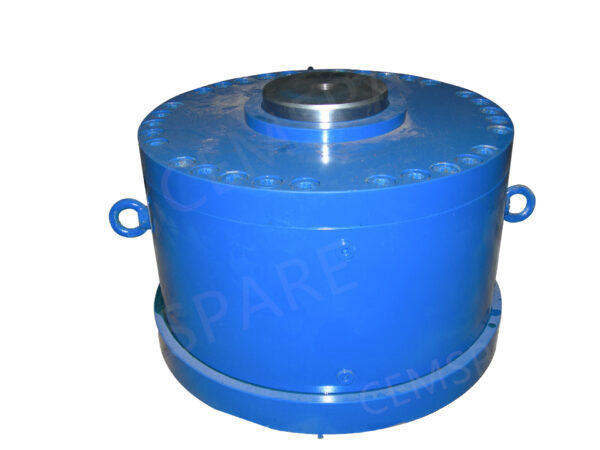

Hydraulic system
- Pressure maintaining test
- Ultrasonic testing
- heat treatment
- Material report
The pressure required for the roller press is provided by the hydraulic system, and a certain gap is maintained between the two rollers to ensure that the material passes under high pressure.

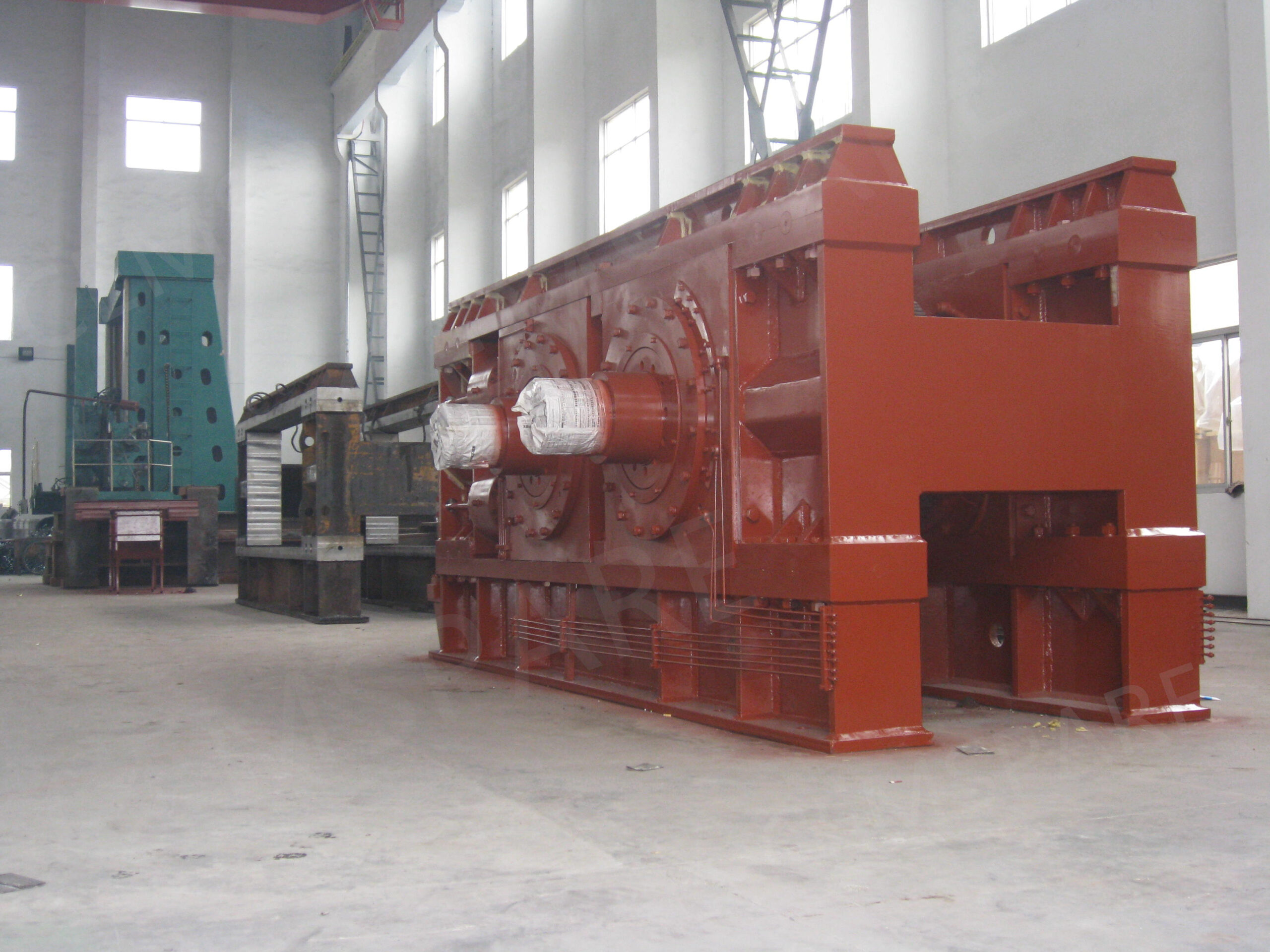

Main Frame
- plasma
- Heat treatment
- Sand Blasting
- material report

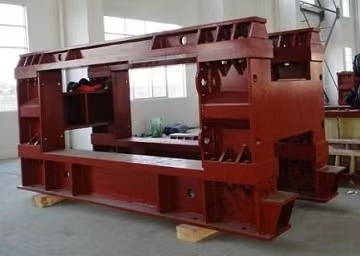

The main frame adopts a welded structure, consisting of upper and lower beams and columns, which are connected with each other with bolts. There is rubber between the bearing seat of the fixed roller and the end of the chassis for buffering. The bottom of the bearing of the movable roller is lined with polytetrafluoroethylene.
Spare parts for roller press
Process Flow
Please note that the final process depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation.
Step 1:Needs Assessment
We begin by working closely with our clients to understand their specific requirements. This includes identifying the types, quantities, and technical specifications of spare parts needed for their cement equipment. We offer tailored solutions, providing our clients with a selection of compatible spare parts, reducing the need for multiple suppliers and simplifying procurement.
Step 2: Supplier Network of CEMSPARE
CEMSPARE established a robust and reliable supplier network to meet the specific needs of our clients in the cement industry. We maintain an extensive database of reputable suppliers and manufacturers. This database includes an evaluation of their reputation, delivery capabilities, and adherence to quality standards. By building and managing this supplier network, we ensure that our clients have access to a diverse range of high-quality spare parts while maintaining cost-efficiency and reliability in the procurement process. This network serves as a cornerstone of our integrated procurement capabilities.
Step 3: Quality Assurance
Quality control is at the core of our integrated procurement process at Cemspare. Upon receipt of spare parts, we conduct a meticulous in-house quality inspection. Our dedicated team of experts thoroughly examines each component to verify that it aligns with the specified technical standards and quality benchmarks. In cases where additional quality verification is deemed necessary, Third-Party Laboratory conduct comprehensive quality tests to provide an extra layer of assurance.
Step 4: Timely Delivery
We closely monitor our suppliers’ delivery processes, ensuring that spare parts are dispatched in a timely manner. To guarantee on-time delivery, we proactively plan loading and shipping schedules according to your specific requirements and delivery deadlines. We manage the logistics and delivery process, ensuring cement plant on-time receipt of spare parts
Step 5: Ongoing Support & Continuous Improvement
At Cemspare, our commitment to clients extends far beyond the procurement phase. We are dedicated to providing continuous support and optimizing our services. We actively solicit and encourage feedback from our clients on their experiences with our services. This includes their feedback on the spare parts procurement process, quality, and overall satisfaction. We make necessary improvements to the spare parts procurement process, adjusting strategies to align with evolving industry demands and technological advancements.
