New dry process cement production
The new dry process cement production line refers to cement produced using a new process of decomposition outside the kiln. Its production is based on suspension preheater and external kiln decomposition technology, using new raw materials, fuel homogenization and energy-saving grinding technology and equipment, and using computer distributed control throughout the entire line to achieve automation of the cement production process and high efficiency, high quality, low consumption and environmental protection.

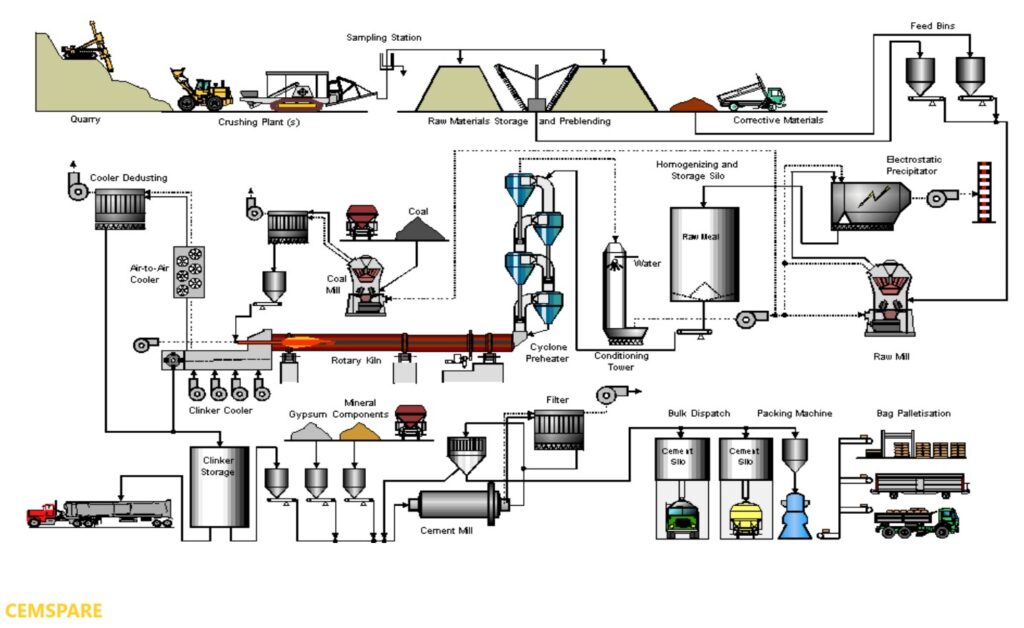

New dry process cement production process flow
Basic configuration of technical equipment of precalciner kiln production 5000T/D line
| S/N | Production processes | Name of main equipment | Performance index | Production capacity | Quantity(sets) |
|---|---|---|---|---|---|
| 1 | Limestone crushing | Hammer crusher | Feed particle size: ＜1.5m, Discharge size: ＜10%R70mm | 700-800t/h | 1 |
| 2 | Limestone homogenization | Stacker | Reserve of circular pre homogenized storage yard: 52000t | Top trolley or cantilever stacker 1000t/d or 800t/d | 1 |
| Reclaimer | Reserve of rectangular pre homogenized storage yard： 2*40000t | bridge-type scraping reclaimer 500t/h | 1 | ||
| 3 | Raw material grinding(ball mill or Vertical milll) | Ball mill | Specification/quantity:Φ4.6m*13m, feed particle size: ≤15%R25mm, Moisture entering the mill: ≤6%， Finished product fineness：12%-14%R80μm, Power:3550kw | 190t/h | 2 |
| Vertical mill | feed particle size: ≤10%R75mm, Moisture entering the mill: ≤6%， Finished product fineness：12%-14%R90μm, Power: around 3550kw | 180t/h | 1 | ||
| 4 | Raw material homogenization silo | MF or CP or IBAU | Specification:Φ22.5m, reserves:15000-20000t | 1 | |

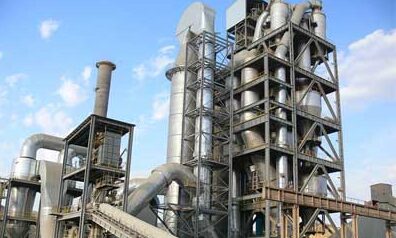

| 5 | five-stage cyclone preheater | C1:4-Φ4.5m, C2:2-Φ6.4m, C3:2-Φ6.6m, C4:2-Φ6.6m, C5:2-Φ6.8m, | 1 | ||
| Calciner | Φ7.4m | 1 | |||

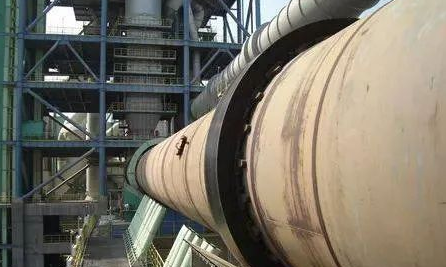

| Rotary kiln | Φ4.8m*72m | 1 | |||
| Grate cooler | Effective area of grate bed: 124.7 ㎡, discharge temperature: 65 ℃+ambient temperature | 1 | |||

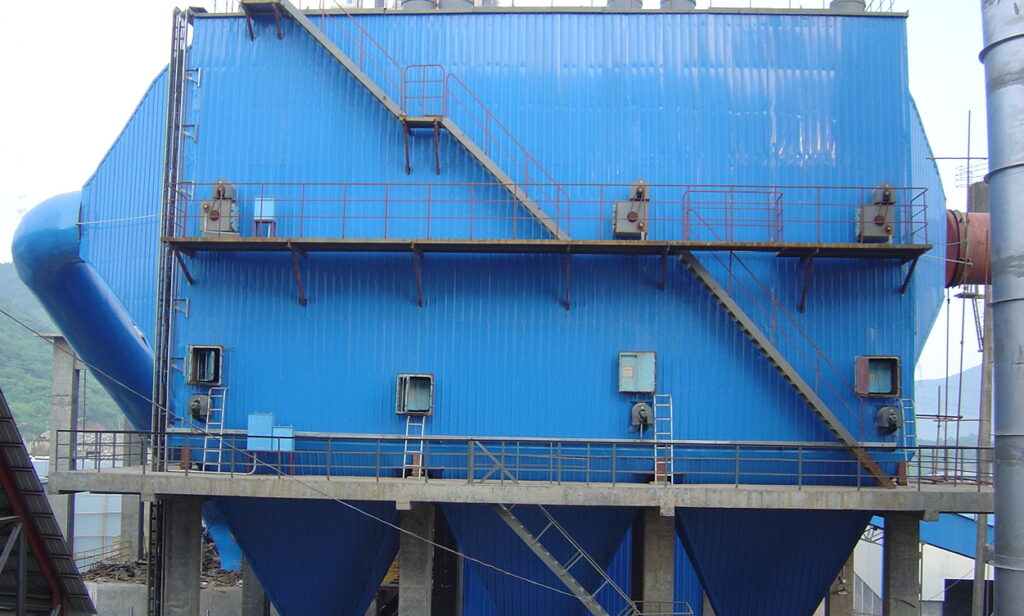

| 6 | Kiln tail gas treatment | Bag filter(Shared with raw material mill) | Filter area: 16960 ㎡, normal temperature: 100-150 ℃, maximum temperature: 260 ℃, inlet dust concentration: ＜ 100g/m ³ (Standard situation), outlet dust concentration: ＜ 30mg/m ³(Standard situation) | Processing flue gas volume: 960000m ³/ h | 1 |
| 7 | Kiln head waste gas treatment | Electrostatic precipitator | Power plant cross-sectional area: 229.4 square meters, flue gas temperature: 220-250 ℃, maximum flue gas temperature: 400 ℃, inlet dust concentration: ＜ 30g/m ³ (Standard situation), outlet dust concentration: ＜ 30mg/m ³(Standard situation) | Processing flue gas volume: 640000m ³/ h | 1 |
| 8 | pulverized coal preparation(Wind swept mill or vertical mill) | Wind swept mill | Specification/quantity:Φ3.6m*9m, feed particle size: ≤25mm, Moisture entering the mill: ≤8%-10%， Finished product fineness：10%R80μm, Power:900kw | 38t/h | 1 |
| 9 | Vertical mill | feed particle size: ≤50mm, Moisture entering the mill: ≤10%， Finished product fineness：12-14%R80μm, Finished product moisture:≤1%，Power:around 560kw | 45t/h | 1 | |
| 10 | Cement grinding (roller press equipped with ball milling system) | Roller press | TRP140/100, Feed particle size: ≤ 20% R30mm | 130t/h | 2 |
| Ball mill | specification:Φ4.2m*11.5m, power:2800kw | 130t/h | 2 |
Main Equipments for Cement plants
